    1024x768 CPT Open Frame LCD Monitor 400cd/M2 Capacitive LCD Touch Monitor

    Ask Lasest Price
    Brand Name : AXNEW
    Model Number : AXD-15OPIP1-VP(VGA/DVI-D)
    Certification : CE.FCC,ROHS
    Price : negotiation
    Payment Terms : T/T, Paypal, Western Union
    Supply Ability : 1300 pieces/month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    1024x768 CPT Open Frame LCD Monitor 400cd/M2 Capacitive LCD Touch Monitor

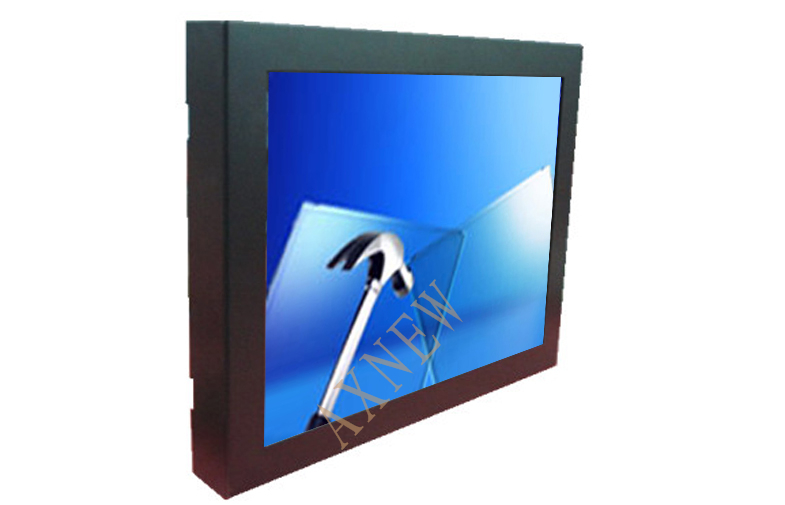

    CPT Open Frame 15 '' Capacitive Touch LCD Monitor Screen For Industrial Chassis Mounting



    Quick Details:

    Model: AXD-15OPIP1-VP

    Screen Size:15’’

    Screen format: 4:3

    Display Resolution(pixel):1024x768

    Contrast Ratio:800:1

    Brightness:400cd/m^2

    Storage temperature : -30℃~85℃

    Input signal: VGA DVI-D

    Power Input: DC 12V
    Glass Type: 2mm anti vandal glass with touch

    Product status: custom


    15 inch industrial open frame LCD monitor with VGA DVI input , slim and thin design with IP65 front bezel for 15’’ LCD with tempered glass to protect from destroying , which is cheap with good quality solution for Medical industry , Automatic equipments, Advertising , vending embedded system, ATM application etc.



    Features and Advantages

    1. New and Industrial A grade perfect panels with stable supply
    2. Slim and simple panel mount all the LCD kits in one , which is easily installed
    3. industrial control board supports the displays working 24 hours,-30-85 degrees
    4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
    5. VGA DVI interfaces ; touch screen options
    6. 15 inch open frame monitor with protective for application control , advertising player ,campus and industrial terminals etc

    Display Specifications


    Display

    15" Color TFT Open frame LCD monitor with protective glass

    Model Name

    AXD-15OPIP1-VP

    Active Display Area (mm)

    304.1(H)x304.1(V)

    Pixel Pitch (mm)

    0.297(H)x0.297(V)

    Resolution (Pixel)

    XGA (1024X768) 262K/16.2M Color

    Brightness (CD/m^2)

    400cd/m^2

    Contrast Ratio

    800:1

    Viewing Angle (CR >=10)

    160/160

    Power consumption

    8.6 W typical, normal operation

    Touch Screen

    5 wire Resistive touch USB options(no touch ,only glass)

    OSD Control

    On the back side

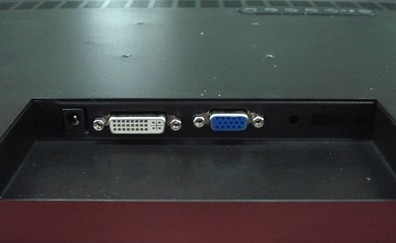

    I/O Connectors

    1x12v,1XVGA,DVI-D

    Power Input

    DC 12V,4A 48W

    Mechanical Specifications


    Construction

    Steel Metal chassis & Black Color

    Dimensions

    364.1 x 288.0x 40.0 (mm)

    Mounting

    VESA Mounting 75x75

    Power source

    AC 100~240V/ 12V DC adapter

    Environment Specifications


    Operating Temperature

    -20~80℃

    Storage Temperature

    -30~85℃

    Rating

    Facilitate installation of the demolition,solid portfolio
