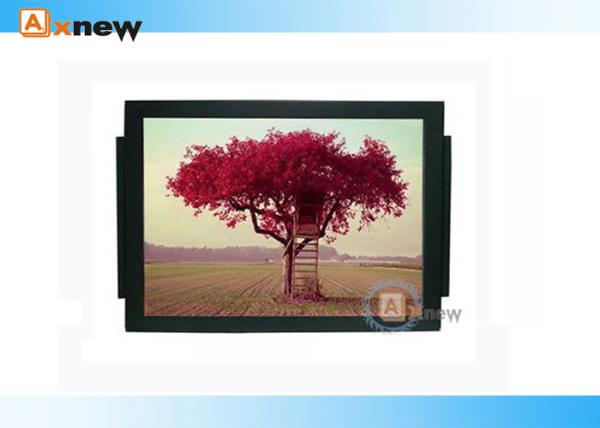

    Capacitive Touch Screen Open Frame Lcd Monitor 10.4 '' 1024X768 3.9mm Projected

    Ask Lasest Price
    Brand Name : AXNEW
    Model Number : AXD-10OPN1P1-C1
    Certification : CE.FCC.ROHS,CCC
    Price : US$150-250/PCS
    Payment Terms : Western Union, T/T,
    Supply Ability : 2500 pcs/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    Capacitive Touch Screen Open Frame Lcd Monitor 10.4 '' 1024X768 3.9mm Projected

    10.4 '' 1024X768 3.9mm Projected Capacitive Touch Screen Open Frame Lcd Monitor


    Display Specifications
    Display10.4" Color TFT Projected capacitive touch open frame monitor
    Model NameAXD-10OPN1P1-C1
    Active Display Area (mm)211.2 (H) x 158.4 (V)
    Pixel Pitch (mm)0.264 (H) x 0.264 (V)
    Resolution (Pixel)1024x768
    Brightness (CD/m^2)350cd/m^2
    Contrast Ratio600:1
    Viewing Angle (CR >=10)140/140
    Power consumption9.5 W typical, normal operation
    Touch Screen3.9mm projected-capacitive Touch;USB Port;eeti
    ConstructionG+G Cover glass
    Durability50 Million touches(min)
    OSD ControlOn the back side
    I/O Connectors1x12v,1XVGA,DVI-D
    Power InputAC 100~240V,Universal,±10% ; AC/DC 12V4A
    Mechanical Specifications
    ConstructionRoasted Metal Frame
    Dimensions261x 208x 43.4(mm)
    MountingVESA 75x75
    Power sourceAC 100~240V/ 12V DC
    Environment Specifications
    Operating Temperature-20~70℃
    Storage Temperature-30~80℃
    Ordering Information10.4” projected-capacitive touch monitor


    Packaging & Delivery

    Packing details

    1x 10.4 inch projected-capacitiv touch monitor
    Packed in 3pieces/carton with protection foam
    Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

    Delivery terms5 working days for stock products after receiving payments; 15 working days for order production


    Features and Advantages

    1. 10.4'' industrial New panels 1024x768, led backlight
    2. industrial control board with wide temperature supports the displays working 24 hours
    3.Open frame design to protect the LCD screen
    4. VGA DVI interfaces ; anti-vandal projected capacitive touch screen bonded on the screen
