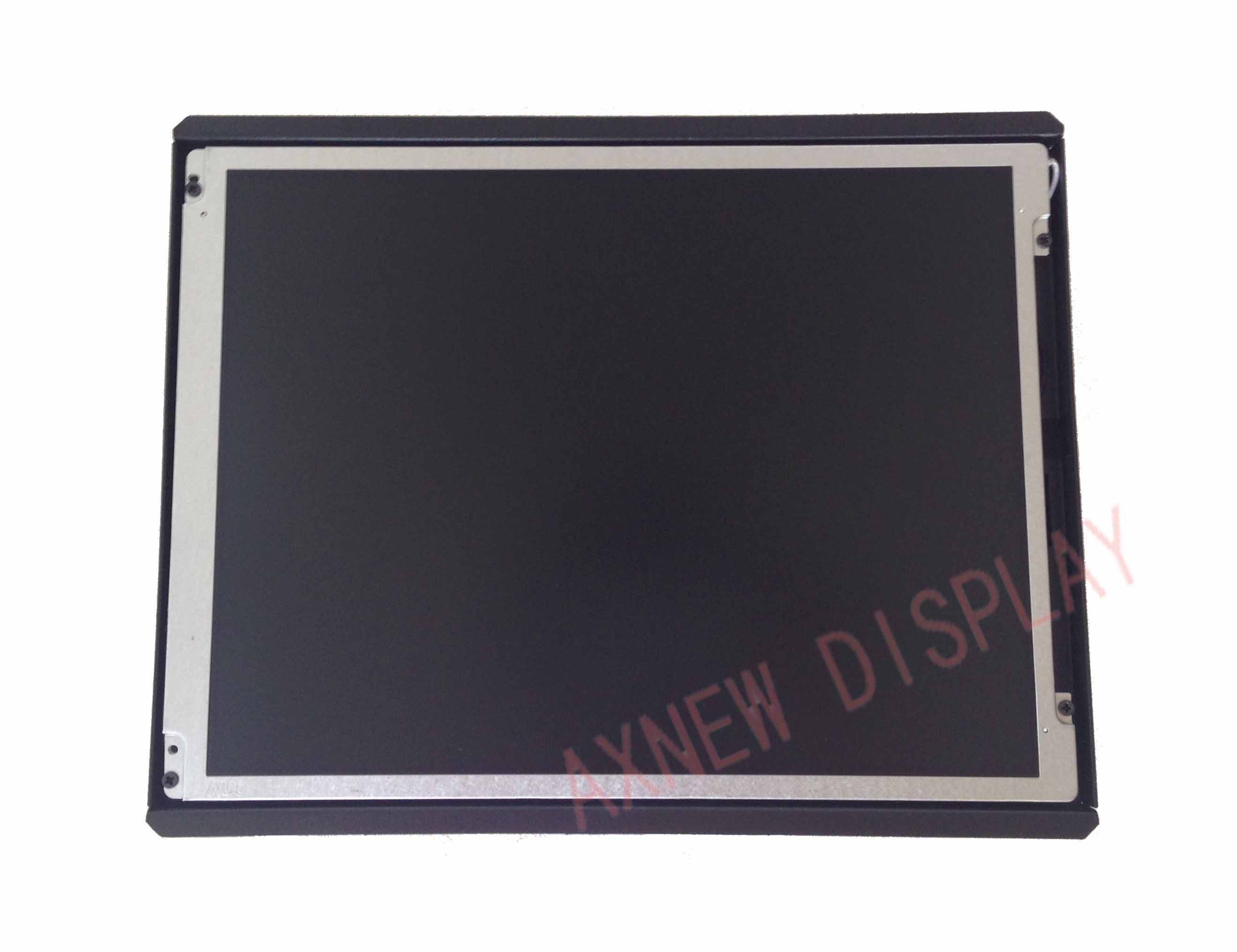

    High Bright 10.4 inch Open Frame LCD Monitor RGB / DVI / HDMI Options

    Ask Lasest Price
    Brand Name : AXNEW
    Model Number : AXD-10OPIPN1P1 -VH3(VGA)
    Certification : CE/ROHS/FCC/ISO
    Price : US$100-200/pcs
    Payment Terms : T/T, Paypal, Western Union
    Supply Ability : 1000 pieces/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    High Bright 10.4 inch Open Frame LCD Monitor RGB / DVI / HDMI Options


    High Bright 10.4 inch Open Frame LCD Monitor RGB / DVI / HDMI Options

    Display Specifications


    Display

    10.4" Color TFT Industrial Open Frame Monitor 1000nits

    Model Name

    AXD-10OPIPN1P1-VH3

    Active Display Area (mm)

    221.2 (H)x158.4(V)

    Pixel Pitch (mm)

    0.264(H)x0.264(V)

    Resolution (Pixel)

    SVGA (800X600) 16.2M Color

    Brightness (CD/m^2)

    1000cd/m^2

    Contrast Ratio

    600:1

    Viewing Angle (CR >=10)

    160/140

    Power consumption

    10.6W typical, normal operation

    Touch Screen

    No Touch ;Resistive ;IR Touch ;RS232/USB(Optional)

    OSD Control

    On the back side

    I/O Connectors

    1x12v,1XVGA,DVI-D(Optional)

    Power Input

    DC 12V,4A 48W

    Mechanical Specifications


    Construction

    No front bezel &Black Color

    Dimensions

    306.6x 230.1x 57.0(mm)

    Mounting

    Embedded ,Wall Mounting Optional

    Power source

    AC 100~240V/ 12V DC

    Environment Specifications


    Operating Temperature

    -20~80℃

    Storage Temperature

    -30~85℃

    Rating

    Facilitate installation of the demolition,solid portfolio

    Ordering Information

    10.4” Open Frame Monitor with VGA input and power adapter


    Packaging & Delivery

    Packing details

    1x 10.4 inch Industrial LCD display;
    Packed in 5 pieces/carton with protection foam
    Optional accessories: 1xVGA, 1x Power supply cable, 1x power
    adapter

    Delivery terms

    7- working days for stock products after receiving payments; 15 working days for order production



    Features and Advantages
    1.New and Industrial A grade perfect panels with stable supply
    2. industrial control board supports the displays working 24 hours
    3. Professional and industrial hardware and parts to guarantee its working normally in rough environment, Aluminum Front Bezel with rugged housing
    4. Industrial design to protect the LCD screen, mounting on the outdoor application
    5. VGA DVI interfaces
