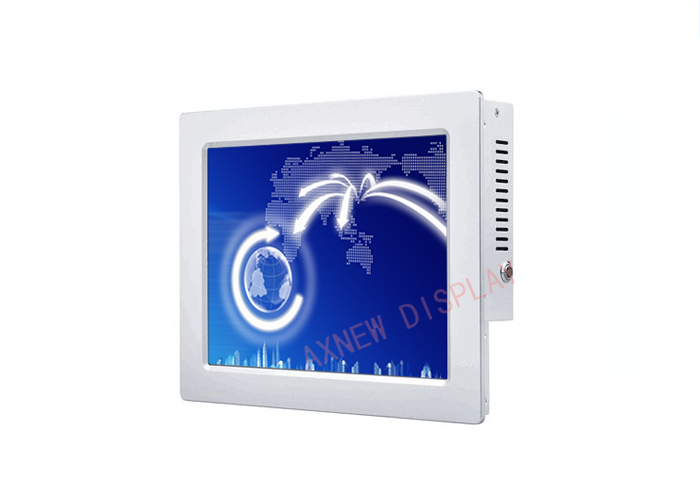

1280X1024 Industrial Touch Panel PC 19 Inch Touch Screen LCD Monitor

Panel PC Specifications
Model Number	AXD-19OPPC-V1
	19’’ panel pc
Case/Bezel Color	white
TFT Type	Industrial LCD with LED backlight
Aspect ratio	4:3
Touch Panel	Industrial 5 wire Resistive Flat Screen
Touch response time	8ms (typical)
Optimal (native) Resolution	1280X1024
LCD panel Pixel pitch	0.297 x 0.297 mm
LCD panel Colors	16.7 million
LCD panel Brightness	350 cd/m2
LCD panel Response Time	5ms
Contrast Ratio	1000:1
Viewing Angle ( Wide )
Horizontal (left/right)	±85° or 170° total
Vertical (up/down)	80°(up), 80°(down) or 160° total
CPU	Intel® Processor I3 (1.8GHz)
storage	2G RAM;SSD 16G/32G Options

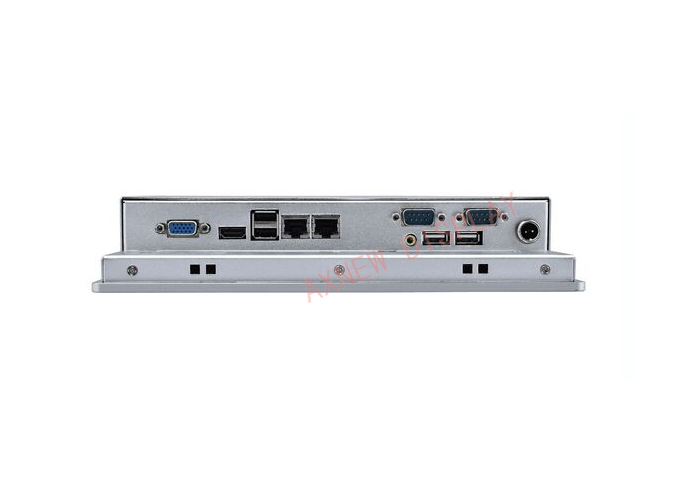

Serial Ports	2 x COM ;RS232/RS485
USB Ports	2x USB V2.0; 2xUSB V3.0
LAN	1 x LAN RJ-45 connector
DC Power In	1 x DC2.5 connector
Video Port	1X Line-out
Other Ports	1x LAN, 1X VGA ,1xHDMI,1X Audio
Internal Sockets & Connectors	reserved for OEM project
Power Specification	DC 12V
Working Environment
Temperature	Operating: -10°C to 60°C ;Storage -20°C to 65°C
Operating Humidity	5 ~ 90% RH @40°C (non-condensing
Vibration	5 ~ 500Hz, 3Grms Random (with CF/SSD)
Dimensions
Mounting Type	Embedded Installation,wall mounting
Mechanical dimensions	423.0 x 327 x 53.0 mm
Weight (Net)	7.5 kgs/ piece, 1 piece/ carton
Drawings	Please contact us for details

Features and Advantages

1.It's the latest evolution of Mini-ITX form factor industrial Motherboard with Dual GBE Lan.

2. It is based on Intel Celeron 3217U+HM76 chipset.Provide 2 Mini-PCIE and 1 Sim Slot to support Wifi/GPS/3G/MSATA.

3. 1 SODIMM slot,Supports up to 8GB, SATA (1 Sata 3.0, 2x Sata 2.0)and MSATA storage modes.

4. It supports 1080P HD and independent Dual view, 1 HDMI and 1 VGA . Dual Channel 24bit LVDS.
Motherboard Type

Since 2009 ,Axnew Display Technology Co.,has developed its own industrial display market as a leader in display technology. With years professional experience ,sales department provides technical support and professional suggestion to our clients, R&D teamwork has been always striving to design and providing our clients good solutions ,our owned developed A/D board and monitors are passed the industrial testing and got the CE,FCC,Rohs Certificates.

Production group owns rich electronic components and resources in suppliers ,several of many benefits will provide are the tools that will enable us to be more efficient, productive, effective, and most importantly, will strengthen the partnership between Axnew and our clients, which will make us global suppliers.

Currently we have established long term relationship with clients in this industrial display line around the world.

AXNEW display developes our business via exhibitions, Alibaba,Global source B2B platform rapidly these years.We are trusted by customers that consists of orginal equipment manufacturers, control device industry, automation applications users from more than 50 countries.

We insist using the new and original panels ,especially the industrial grade , for our monitors and customized displays.Our stable suppliers are mainly Auo, sharp, Chimei, Boe, samsung,Lg panels.

Customized products are our advantaged business. Customers could share us any information about your ideas and let us modify the standard products.
